PW100 Engine Stand
Global Engine Support
Preneet Engine Transport Stands feature elastomer shock isolation mount designs that keep natural frequencies between 7 and 10 Hz while reducing shock and vibration loads during shipment. Most transport stands are bootstrap compliant, feature heavy duty locking casters and tow bars, and have been proof-loaded to OEM specifications. Our standard paint is Skydrol resistant Red, but customer specified colors are also available.
Shock Protection
Heavy-Duty Build
OEM Compliance
Skydrol Resistant
Engineered for Safe,
Reliable Transport
Built for a Higher Standard

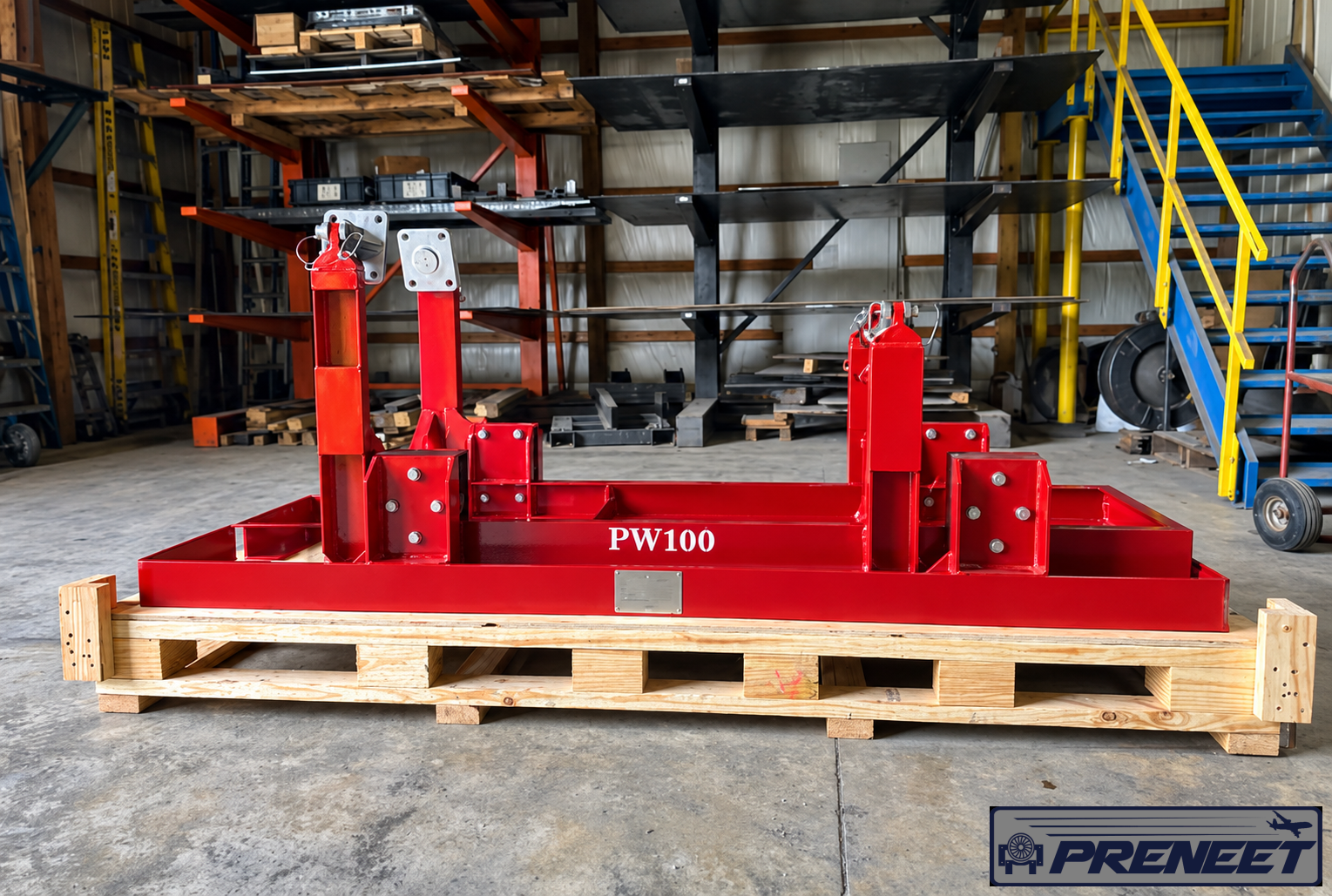

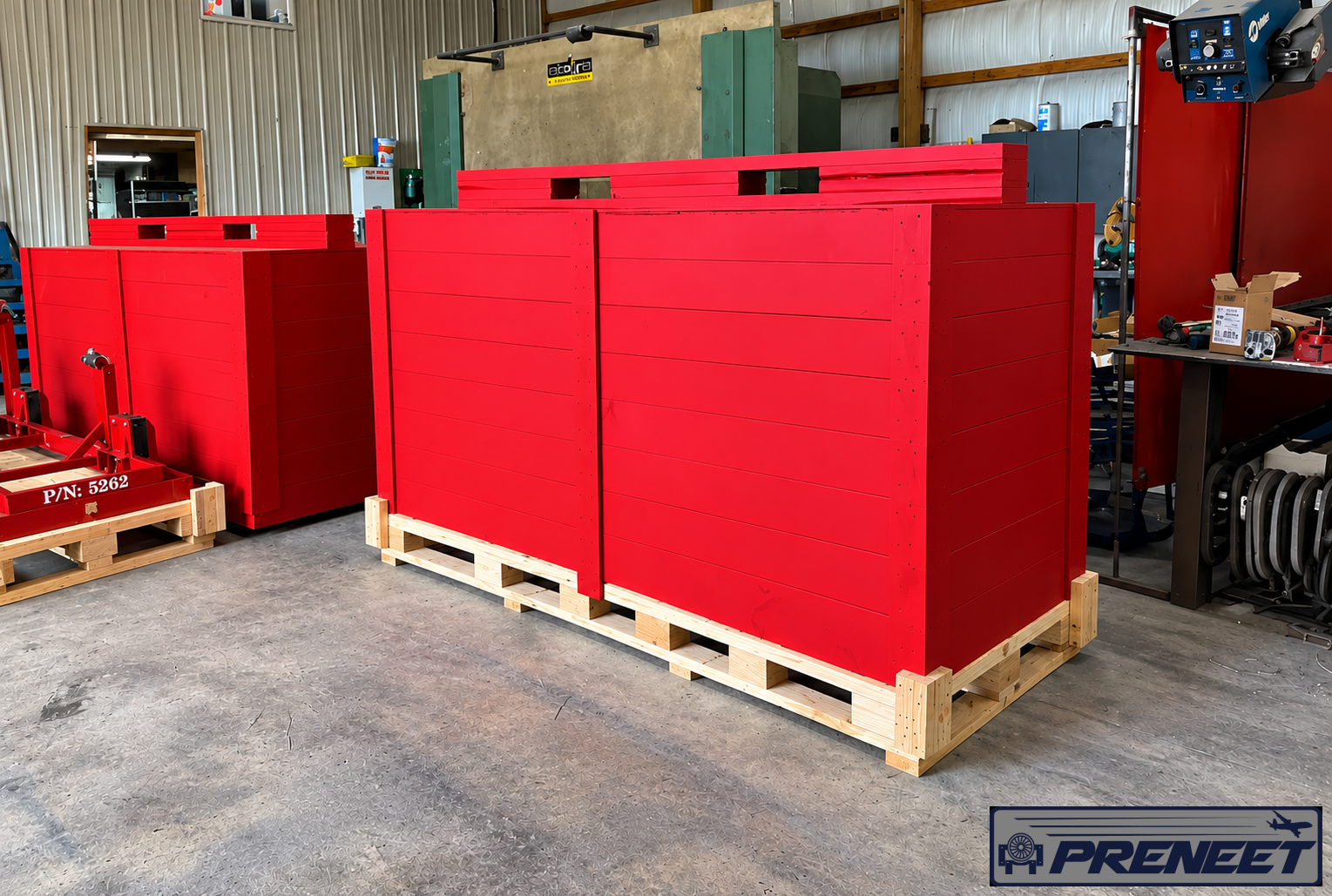

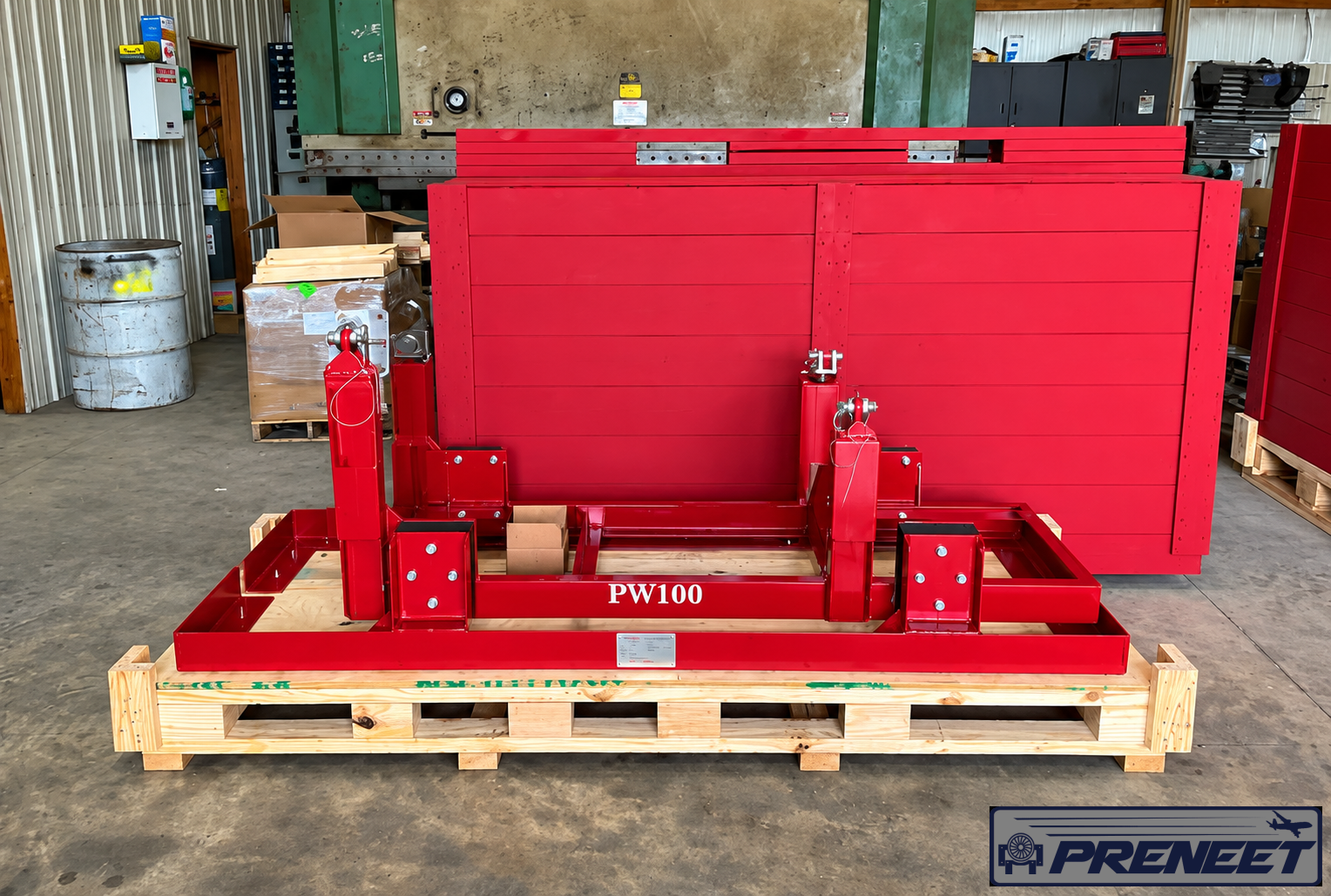

The PW100 Engine Stand consists of separate base and cradle assemblies, providing a secure and reliable solution for transporting PW100 engines. It features stainless-steel mounts, stainless-steel hardware, and four shock-mount isolators to help protect the engine during handling and shipment. The stand also includes a boxed enclosure with a protective skid and is proof-loaded in accordance with applicable ground-handling requirements. This is a non-bootstrap stand.
Elastomer shock isolation mounts help reduce shock and vibration loads during shipment.
Built with durable components, locking casters, and tow-bar provisions for ground handling.
Proof-loaded to applicable OEM specifications for reliable transport and handling operations.
Standard finish is Skydrol resistant red, with customer specified colors available.
Compatible Engine Models
The PW100 Engine Stand is designed to support a range of Pratt & Whitney engines, including:
PW 118
PW 121
ATR 42
PW 123
De Havilland Q100 / 200 / 300
PW127
ATR 72
Dimensions & Weight
Built to meet the demands of global engine transport.
Length
92.50”
Width
36.00”
Height
52.63”
Weight
838 lbs
PW100 Engine Stand
Preneet Engine Transport Stands feature elastomer shock isolation mount designs that keep natural frequencies between 7 and 10 Hz while reducing shock and vibration loads during shipment. Most transport stands are bootstrap compliant, feature heavy duty locking casters and tow bars, and have been proof-loaded to OEM specifications. Ourstandard paint is Skydrol resistant Red, but customer specified colors are also available.
Product Description:
Stand consists of separate base and cradle assemblies and provides convenient features to securely transport PW100 engines. This engine stand includes,stainless steel mounts,stainless-steel hardware, four shock mount isolators, boxed enclosure with skid for protection and shipping and is proof-loaded per applicable ground handling documents. This is a non-bootstrap stand.
Shipping Information:
- Length – 92.50’’
- Width – 36.00’’
- Height – 52.63’’
- LBS – 838
This stand has a patented design that allows for QEC compenents to remain on the engine.
- PW 118 ( Embraer 120)
- PW 121 ATR 42
- PW 123 DeHavilland Q100/200/300
- PW127 ATR 72
